Fiberglass-reinforced plastic tanks provide durable storage for industrial and chemical applications.
FRP tanks are lightweight compared with many metal alternatives. They can also be designed to resist corrosion, moisture and a wide range of process chemicals.
Troy Dualam designs and fabricates custom FRP tanks based on the needs of each project.
What Is an FRP Tank?
FRP stands for fiberglass-reinforced plastic.
The material combines glass-fibre reinforcement with a resin system. The glass provides strength, while the resin binds the fibres together and helps protect the tank from the stored material.
FRP tanks can be designed for:
- Chemical storage
- Water and wastewater treatment
- Industrial processing
- Acids and corrosive liquids
- Process and reaction vessels
- Environmental containment
The material system must be selected for the chemical, concentration and operating temperature.
FRP Tank Material and Construction
An FRP tank normally contains several layers. Each layer has a specific purpose.
Corrosion Barrier
The inner corrosion barrier is designed for contact with the stored chemical. Its resin and reinforcement must be compatible with the application.
Structural Laminate
The structural laminate provides strength and supports the tank under operating loads.
Exterior Surface
The outer surface protects the laminate from weather, handling and ultraviolet exposure where required.
Depending on the application, construction may include:
- Fiberglass reinforcement
- Vinyl ester or other resin systems
- A resin-rich inner surface
- Additional structural reinforcement
- An optional thermoplastic liner
- Exterior protection for outdoor service
Common Uses for FRP Tanks
FRP tanks are used in many industrial settings.
Common applications include:
- Chemical storage and processing
- Industrial wastewater systems
- Water-treatment equipment
- Acid storage
- Scrubbers and process vessels
- Double-wall containment
- Manufacturing and production systems
An FRP tank for water treatment may be used for chemicals, process water or wastewater. The design must reflect the liquid being stored and the conditions at the facility.

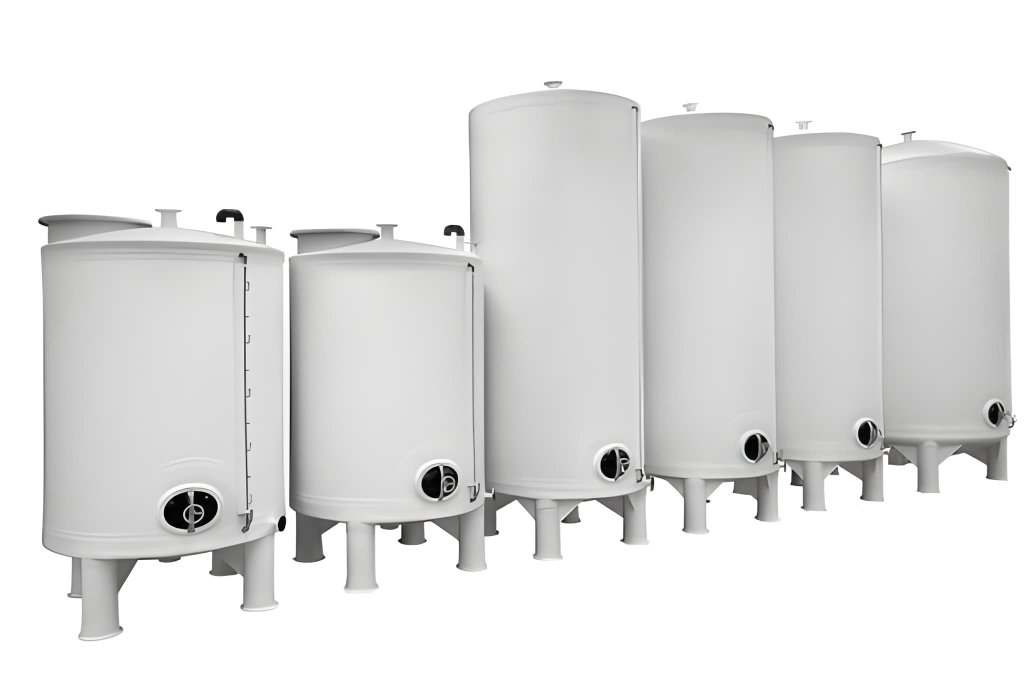

FRP Tank Sizes and Configurations
FRP tanks are not limited to one standard size or shape.
They can be designed as:
- Vertical tanks
- Horizontal tanks
- Open-top tanks
- Closed-top tanks
- Single-wall tanks
- Double-wall tanks
- Process vessels
- Large-diameter field or shop-fabricated tanks
Connections, nozzles, supports and access points can also be positioned around the needs of the system.
The tank dimensions should be based on capacity, available space, transportation limits and structural requirements.
Related: Installing a New FRP Tank
Important FRP Tank Specifications
A complete tank specification should provide more than the required capacity.
Important information includes:
- Stored chemical
- Normal and maximum concentration
- Operating temperature
- Maximum upset temperature
- Pressure or vacuum
- Tank capacity
- Tank dimensions
- Indoor or outdoor location
- Wind and seismic loads
- Nozzle locations
- Support requirements
- Required inspections or standards
Providing accurate operating information helps the manufacturer select the right materials and design.ion barrier design
Factors That Affect FRP Tank Cost
FRP tank pricing varies from project to project.
The final cost may be affected by:
- Tank size and capacity
- Resin system
- Corrosion-barrier design
- Structural requirements
- Internal liners
- Double-wall containment
- Number and size of nozzles
- Access platforms or ladders
- Transportation and installation
- Required testing and documentation
The lowest initial price is not always the lowest long-term cost. Material compatibility, maintenance and expected service conditions should also be considered.
Fiberglass Reinforced Plastics Tanks for Sale
If you’re searching for fiberglass reinforced plastics tanks for sale, it’s critical to work with a manufacturer that understands engineering, materials, and fabrication—not just production.
At Troy Dualam, every tank is custom-built to specification, ensuring performance in corrosive and demanding environments rather than relying on generic designs.
FRP and GRP Tanks
FRP means fiberglass-reinforced plastic. GRP means glass-reinforced plastic.
The terms usually refer to the same general type of composite material. FRP is commonly used in North American industrial and engineering specifications.
The important issue is not which abbreviation is used. The tank must be designed with the correct resin, reinforcement and corrosion barrier for the application.
Why Choose Troy Dualam for Fiberglass Reinforced Plastics Tanks?
Troy Dualam designs and fabricates fiberglass reinforced plastics tanks using an integrated engineering and manufacturing approach. Our tanks are built for:
- Corrosion resistance in aggressive chemical environments
- Long service life with minimal maintenance
- Custom sizing and configuration
- Compliance with industrial and safety standards
From design and material selection to fabrication and support, we deliver FRP tank solutions engineered for reliability and performance.
Custom FRP Tanks
Off-the-shelf tanks may be suitable for simple storage needs. More demanding applications often require a custom design.
A custom FRP tank can account for:
- Specific chemicals and temperatures
- Large or unusual dimensions
- Site access restrictions
- Custom nozzle layouts
- Structural loads
- Process equipment connections
- Inspection and documentation requirements
Troy Dualam combines engineering and fabrication to produce tanks around real operating conditions.
Why Use FRP for Industrial Tanks?
FRP offers several practical benefits:
- Resistance to rust
- Custom fabrication options
- A high strength-to-weight ratio
- Lower weight than many metal tanks
- Material systems for corrosive service
- Reduced need for protective metal coatings
FRP is not automatically suitable for every chemical. Correct material selection and engineering remain essential.
Frequently Asked Questions About FRP Tanks
What are FRP tanks used for?
FRP tanks are used for chemical storage, water and wastewater treatment, industrial processing and other applications where corrosion resistance is important.
What is fiberglass-reinforced plastic?
It is a composite material made from glass-fibre reinforcement and resin. The combination creates a strong and relatively lightweight material.
Are FRP and GRP tanks different?
The terms normally describe the same type of composite tank. FRP is the more common term in many North American industrial specifications.
How long does an FRP tank last?
There is no single lifespan for every tank. Service life depends on chemical compatibility, temperature, design, fabrication, installation and maintenance.
What are the disadvantages of FRP tanks?
FRP tanks require correct material selection and experienced fabrication. Damage can occur when the wrong resin is selected or when the tank operates outside its design limits.
Is FRP stronger than steel?
The materials have different properties. FRP is much lighter and offers a strong strength-to-weight ratio, but it should not be described as universally stronger than steel.
Discuss Your FRP Tank Requirements
Troy Dualam designs custom FRP tanks for chemical storage, water treatment and industrial processing.
Contact our team with the chemical, concentration, temperature, required capacity and site conditions. We can help determine the appropriate materials and tank configuration for the project.
Read more: Why You Should Choose FRP for Tanks
